Specifications

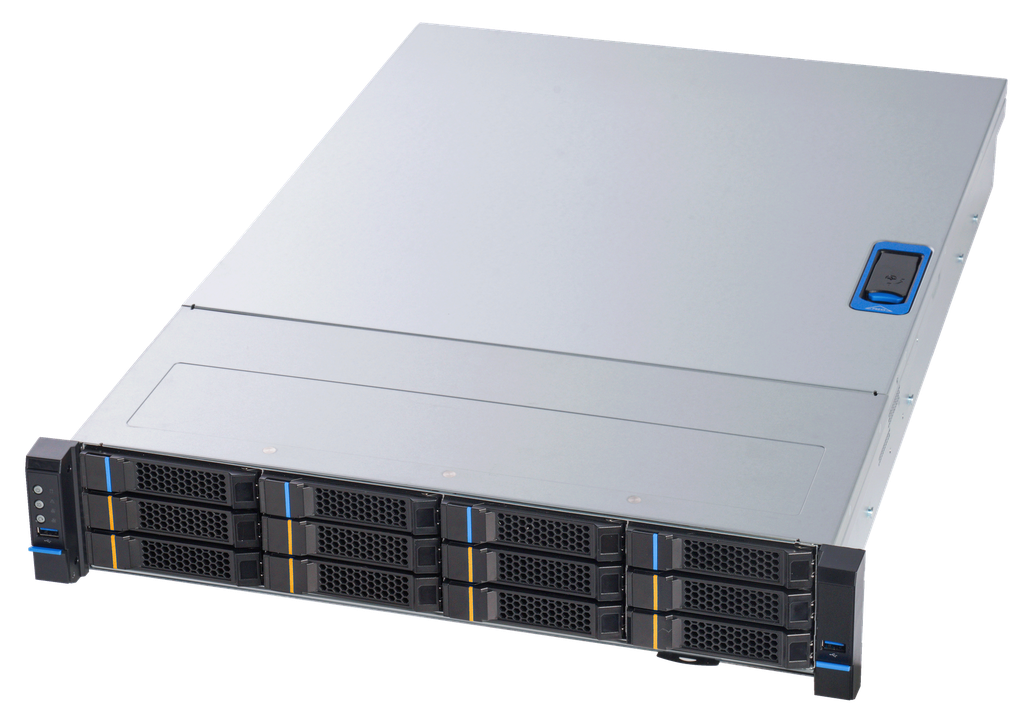

| Form Factor | 2U Rackmount Chassis, SSI EEB (12" x 13"), 1+1 CRPS (80+ Platinum) or 2U Single |
| Compatible Drive Type | SATA, SAS, Tri-mode |
| Dimensions | 658.6 x 438.0 x 87.0 mm (25.93" x 17.24" x 3.43") |
| Weight | 11.5 kg |
| PCIe Expansion Slots | 7 x Low Profile or 3 x Full Height |
| Front Panel Header | Power On/Off; System Reset; UID; 2x USB 3.0 |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Non-Operating Humidity | 50% to 90% |
| Drive Bay | 12 x 3.5" Hot-swap |
| Storage Backplane | 3.5" 12-port 12Gbps Mini-SAS HD, Passive or Active |
| Cooling System | Middle: 3x 8038 PWM Fans |
