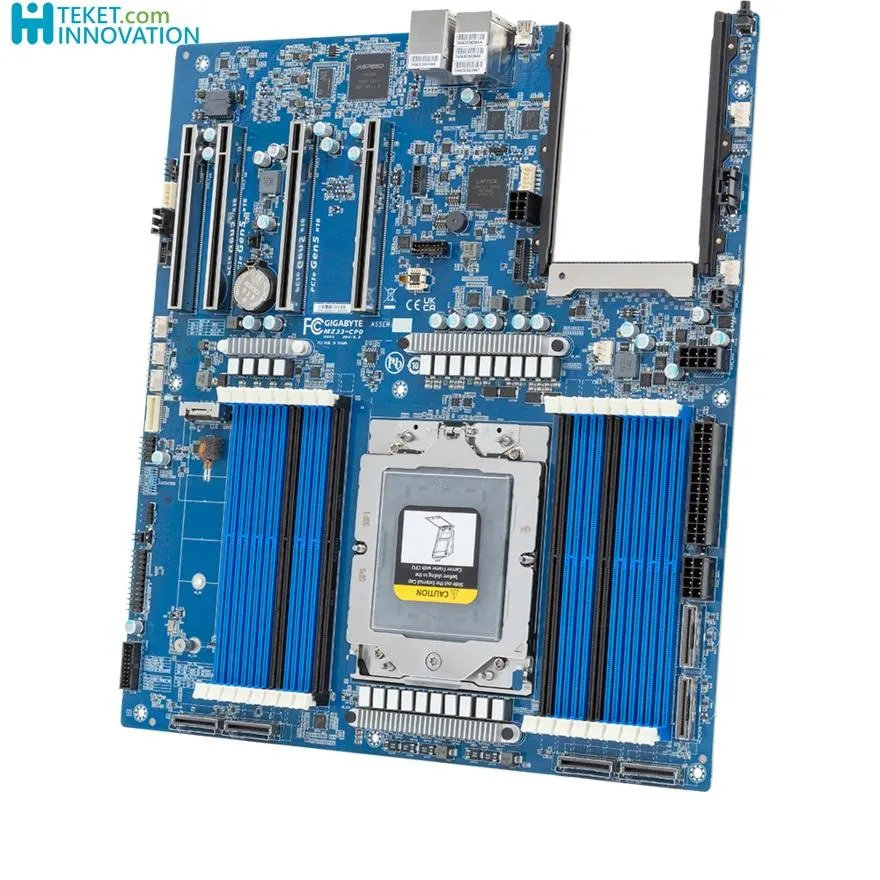

Specifications
| CPU Support | AMD EPYC 9005 Series Processors, AMD EPYC 9004 Series Processors |
| Display Connectors | 1x VGA; 1x Mini-DP |
| Form Factor | E-ATX |
| CPU Socket | SP5 |
| Socket Count | 1 |
| Maximum TDP Support | 400W |
| Dimensions | 305 x 330 mm |
| Socket Type | LGA 6096 |
| Chipset | System on Chip |
| Memory Type | DDR5 RDIMM |
| Memory Channels | 12 |
| Number of Memory Slots | 24 |
| Memory Speed | AMD EPYC 9005 (1DPC): Up to 5200 MT/s; AMD EPYC 9005 (2DPC 1R): 4400 MT/s; AMD EPYC 9005 (2DPC 2R): 4000 MT/s; AMD EPYC 9004 (1DPC): Up to 4800 MT/s; AMD EPYC 9004 (2DPC): 3600 MT/s |
| LAN Controller | Broadcom BCM57416 |
| LAN Ports | 2x 10Gb/s RJ45; 1x 10/100/1000 Mbps Management LAN |
| NCSI Support | Yes |
| Onboard Graphics | ASPEED AST2600 |
| PCIe Expansion Slots | 4x PCIe Gen5 x16 |
| MCIO Connectors | 2x MCIO 8i (PCIe Gen5 x8 or SATA); 4x MCIO 8i (PCIe Gen5 x8); 1x MCIO 8i (PCIe Gen4 x8) |
| M.2 Slots | 1x M.2 (2280/22110) PCIe Gen4 x4 |
| Storage Interface | 2x MCIO 8i for 4x Gen5 NVMe or 16x SATA 6Gb/s; 4x MCIO 8i for 8x Gen5 NVMe; 1x MCIO 8i for 2x Gen4 NVMe |
| Power Connectors | 1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 1x 6-pin ATX 12V power connector |
| Fan Headers | 1x CPU fan header; 5x System fan headers |
| USB Internal Headers | 1x USB 3.2 Gen1 x2 header; 1x USB 2.0 header |
| Rear USB Ports | 2x USB 3.2 Gen1 |
| Serial Port | 1x COM |
| TPM | 1x TPM header with SPI interface (Optional TPM2.0 kit: CTM010) |
| BMC | ASPEED AST2600 |
| Front Panel Header | 1x Front panel header |
| Backplane Board Header | 1x Backplane board header |
| PMBus Connector | 1x PMBus connector |
| IPMB Connector | 1x IPMB connector |
| Operating Temperature | 10°C to 40°C |
| Operating Humidity | 8-80% (non-condensing) |
| Video Resolution | 1920x1200@60Hz 32bpp |
| Package Contents Retail | 1x MZ33-AR0; 1x I/O shield; 1x Quick start guide; 1x MCIO 8i to 8x SATA 6Gb/s cable (600mm) |
